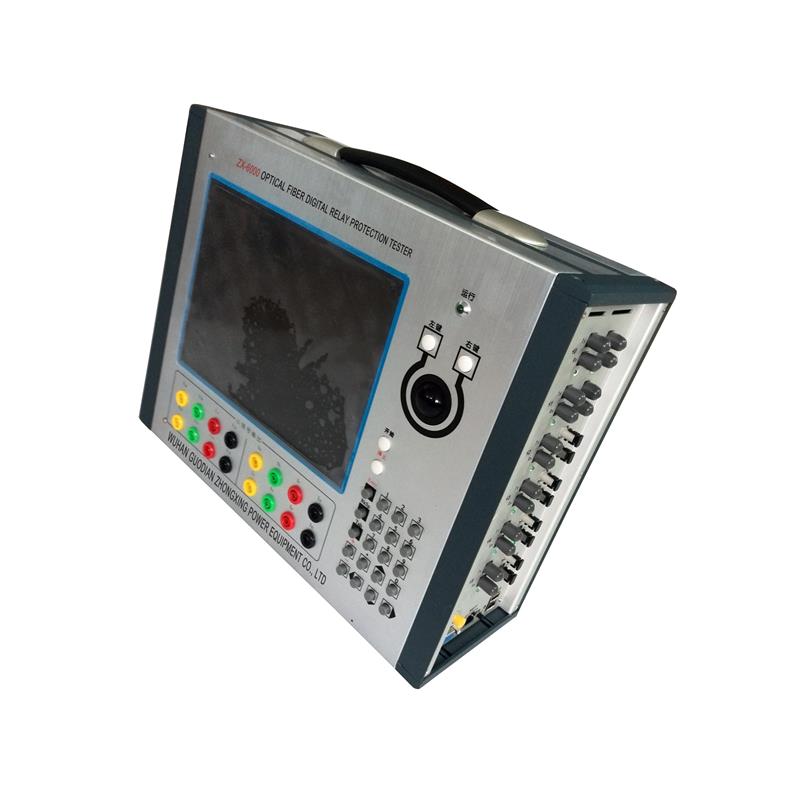

Manufacturer High Quality and Inexpensive Digital Relay Protection Tester Accuracy 0.5 grid

           Wuhan GuoDianZhongXing Electrical Power Equipment Co.,Ltd

Production Pictures

Product Information

1. 4/6/8 pairs of 100M fiber optic communication Ethernet interface, can send or receive IEC61850-9-1/2 format SV, Goose,IEEE-1588 message

2. Support maximum 24 groups of SV message + 64 groups of Goose message output at the same time

3. 3/5 pairs 2~10M fiber optic ports, can send and receive IEC60044-7/8 FT3,extended FT3,private FT3 format SV message

4. 12 channels small signal simulating output for testing small signal input protection devices

5. Built in GPS synchronization module, 1 pair interface for receiving IRIG-B/PPS synchronization or providing IRIG-B synchronization source

6. Complete SCL(SCD,CID,ICD,NPI) file parsing, auto configuration of SV, GS message

7. Message detecting, monitoring, packet capture, message auto analysis function

8. PCAP message replaying, PCAP file editing function

9. Abnormal SV, GS, TF3 frame simulation test function

10. Network pressure and Goose storm test function

11. Intelligent terminal SOE response time test function, accuracy <0.1ms

12. Synchronization test function, synchronization mode support both IRIG-B and IEEE-1588

13. Built in IPC, can operate independently or connect with PC, same software with PC

14. With Fiber optic communication port for data transfer, mirroring, loopback

Company information

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
