15kvA / 50KV High Voltage Test Equipment SF6 Gas Inflated HV Auto Testing Transformer

Name: 15kvA 50KV High Voltage Test Equipment SF6 Gas Inflated HV Auto Testing Transformer
Brand: GDZX
Price: 1 USD

Buy cheap 15kvA / 50KV High Voltage Test Equipment SF6 Gas Inflated HV Auto Testing Transformer product

Brand Name : GDZX

Model Number : YDQ

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : usd $500.00 - $4000/set

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000sets/month

Delivery Time : 15days

Packaging Details : Chūkǒu mù xiāng 4/5000 Export wooden box

input voltage : AC 220(380)V

no-load loss : 0.2% ~ 0.35%

output voltage wave : sine wave

Timing range : 0~9999s

Product Name : Gas type Testing Transformer

Brand : GDZX

Contact Now

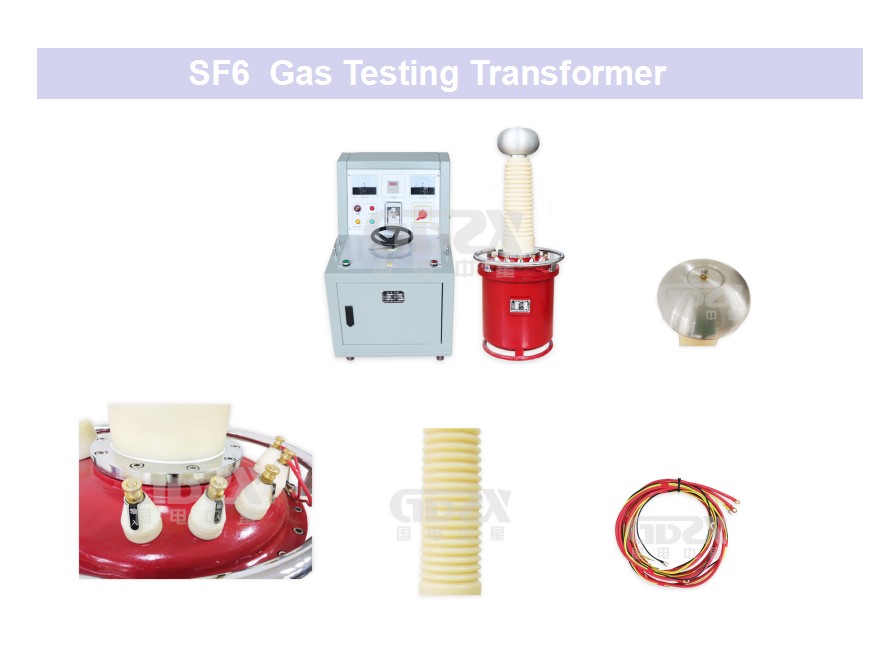

SF6 Testing Transformer Introduction:

This device incorporates the most advanced SF6 gas application technique to test the insulation performance for all kinds of electric equipment and especially suitable for field work.

Features:

Portable, small in size, light in weight (40% -65 % lighter than the same level of oil type)

Clean, no oil pollution, no maintenance

Unaffected by climate, on site testing without standstill

The dielectric strength is significantly higher than the oil type, little corona

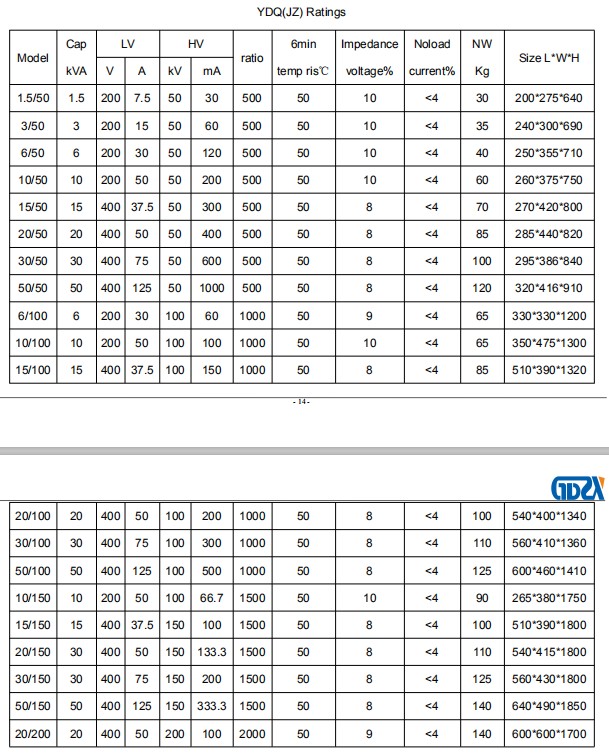

Technical indicators:

1. Voltage class: 10kV~600kV

2. Capacity range: 1~600KVA

3. No-load current: < 7%

4. Impedance voltage: < 8%

5. Rated Voltage partial discharge: <5PC
